NEXT GENERATION AGRICULTURE TECHNOLOGY
AAA-20L
Agriculture Drone
Smarter Farming for a Healthier Tomorrow
An advanced agriculture drone designed for precise spraying, better coverage and higher efficiency — built for modern farming.
30 LTank Capacity
HighSpraying Efficiency
PreciseApplication
Save Timeand Labour
HigherProductivity
ABOUT AAA-20L
Engineered for
Modern Agriculture

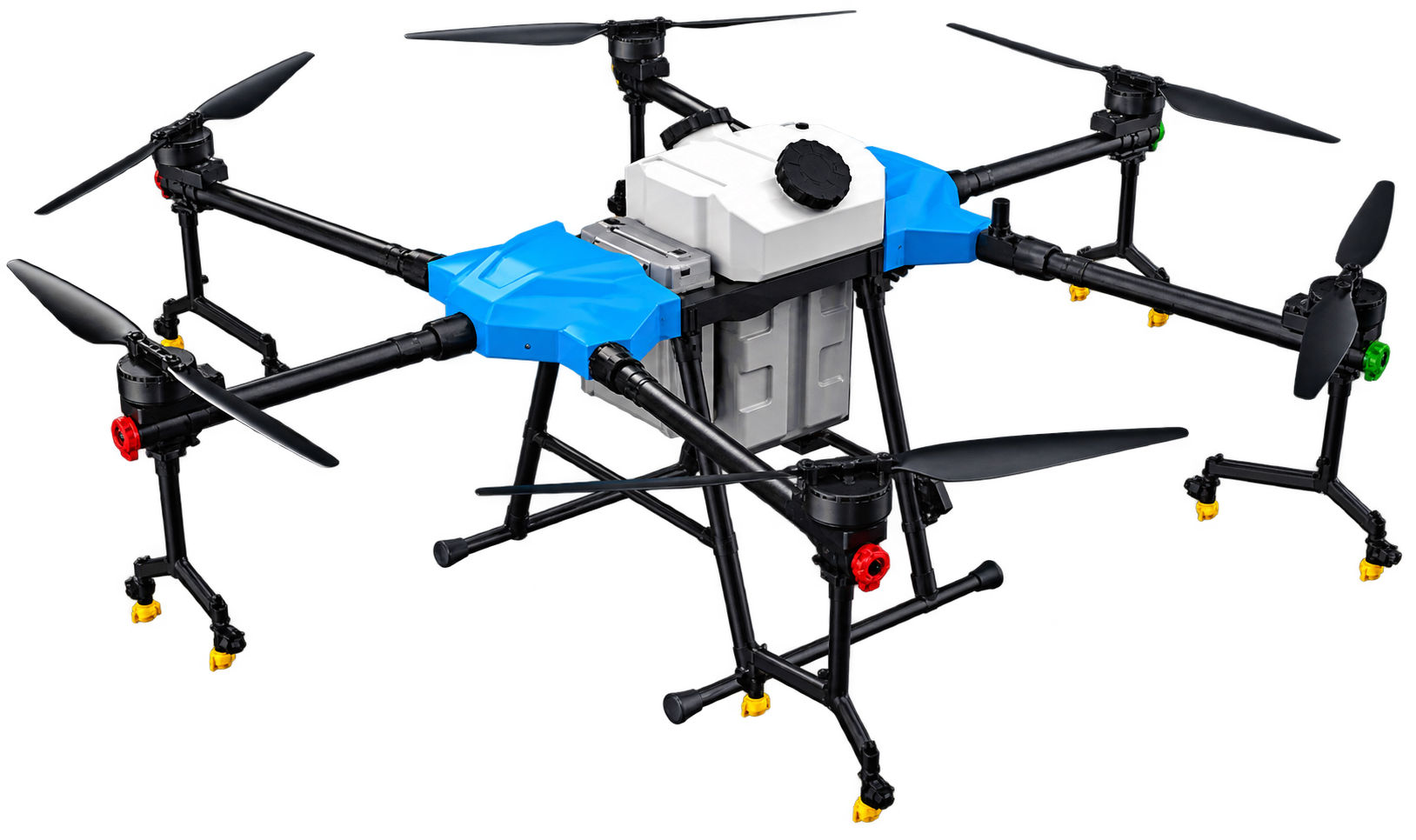

The AZANSYS AAA-20L Agriculture Drone is designed to deliver efficient, precise and cost-effective spraying, fertilizer application and crop care. It helps farmers achieve better yield with less effort and lower cost.
- Intelligent Flight Control System
- Uniform Spraying & Better Coverage
- Durable, Reliable & Field-Ready Design
DRONE❧
KEY HIGHLIGHTS
Powerful Performance
for Higher Yield
Designed to cover more area in less time with accurate spraying and automated operation.
View Full SpecificationsADVANCED FEATURES
Smart Technology for
Efficient Farming
APPLICATIONS
Suitable for Various
Crops and Farmlands
Ideal for spraying pesticides, fertilizers and crop nutrients across a wide range of applications.
SEE AAA-20L IN ACTION
Real Fields.
Real Results.
Watch how the AZANSYS agriculture drone helps farmers achieve better productivity with smart technology.
WHY CHOOSE AZANSYS
A Trusted Partner
for Modern Farmers
The AZANSYS AAA-20L is built to make spraying easier and faster — better coverage, less labour and dependable day-to-day operation.
AZANSYS Product TeamProduct support, India
FREQUENTLY ASKED QUESTIONS
Have Questions?
We Have Answers.
Find answers to common questions about the AAA-20L Agriculture Drone.
View All FAQsWhat is the tank capacity of AAA-20L?
The AAA-20L is built around a 30 L spray tank for efficient spraying and better coverage; the flight manual states a rated tank load of 1 × 28 kg.
What crops can be sprayed using AAA-20L?
It supports agriculture spraying across suitable crops and fields. Please confirm crop-specific use with the AZANSYS product team.
How much area can it cover in an hour?
Coverage depends on field conditions, application settings and operating practice. Contact AZANSYS for validated performance details.
Is training provided for drone operation?
Contact the AZANSYS team for current training and operator-support information.
What kind of support do you provide?
Reach out to our support team for product, maintenance and technical assistance.
AAA-20L OVERVIEW
Designed around agriculture spraying.
Highlights drawn from the AAA-20L Flight Manual, Version 1.7. Refer to the official manual and actual product for complete specifications and operating limits.
Airframe
- Airframe life
- ≈1600 hours
- Dimensions (l × w × h)
- 2890 × 2890 × 775 mm
- Frame material
- Professional carbon fibre, foldable arms
- Protection rating
- IP65 dust and water resistance
- Permissible landings
- ≈10,000
Spraying system
- Tank rated load
- 1 × 28 kg
- Pumps
- 1 × 8 L
- Centrifugal nozzles
- 2
- Flow rate
- Up to 5 L/min
- Application control
- One-key amount setting
Flight parameters
- Standard take-off weight
- 65 kg
- Max take-off weight
- 65 kg
- Hovering time
- 10 min (65 kg · 14S 28000 mAh)
- Max operating speed
- 10 m/s
- Max flying speed
- 10 m/s
- Max wind resistance
- 8 m/s
- Recommended temperature
- −10 °C to 50 °C
- Max ceiling above sea level
- 98 ft
Propulsion
- Motor KV
- 100 KV/V
- Stator size
- 96 × 20 mm
- Max thrust
- 27 kg/axis (53.6 V, sea level)
- Motor weight (combo)
- 1774 g
- Max input voltage
- 60.9 V
- Max working current
- 120 A (short duration)
- Operating temperature
- −20 °C to 50 °C
- Propeller size
- 36 in (36190)
- Propeller material
- Carbon plastic
Battery
- Capacity
- 14S 28000 mAh · 51.8 V
- Weight
- 9.20 kg
- Model
- AZANSYS

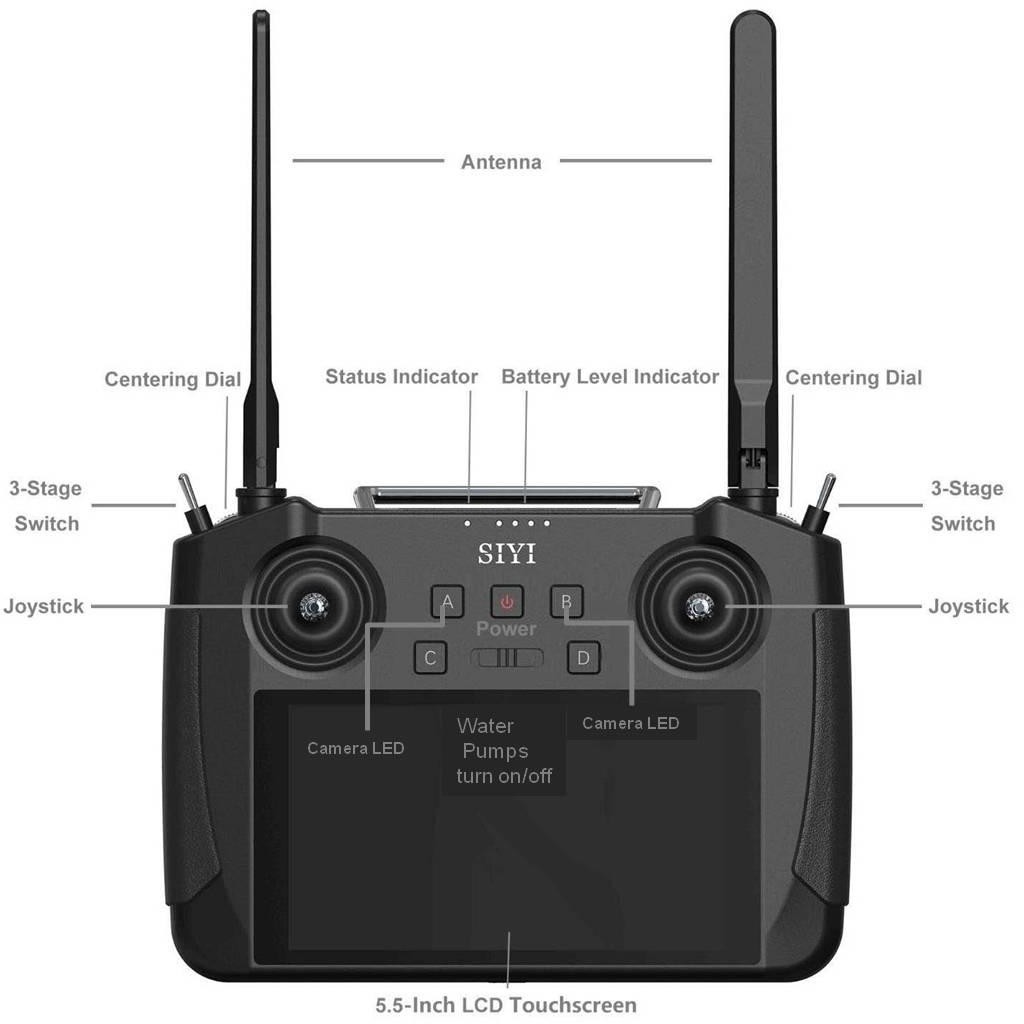

Remote control
- Model
- SIYI MK15
- Operating frequency
- 5.725 – 5.850 GHz
- Effective transmission
- 500 m (unobstructed)
- Battery
- 7.4 V 10200 mAh · 15 hours
- Charging
- PD 30 W · Type-C

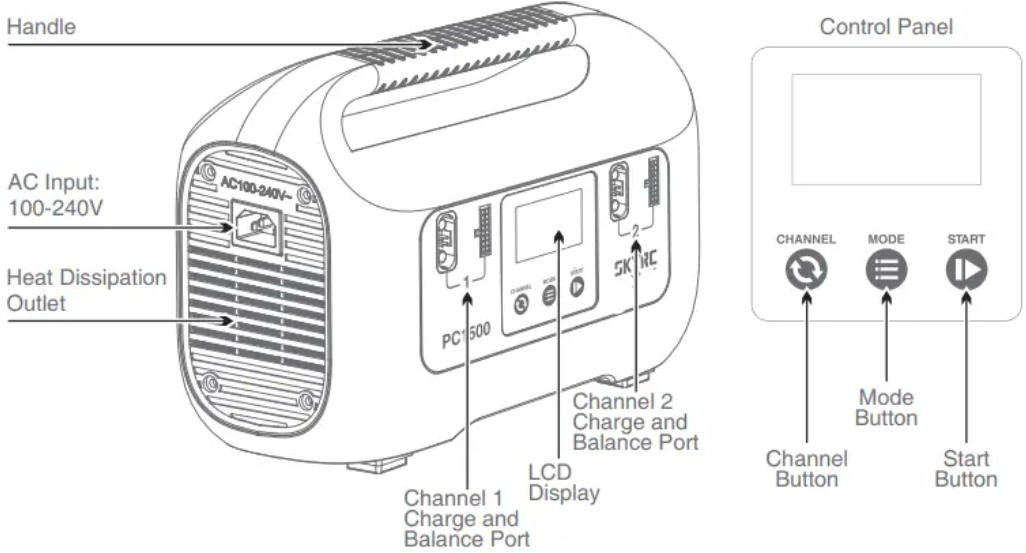

Charger
- Input
- 110 – 220 V AC
- Output power
- 2400 W
- Charging current
- 15 – 50 A
- Battery type
- Lithium-ion

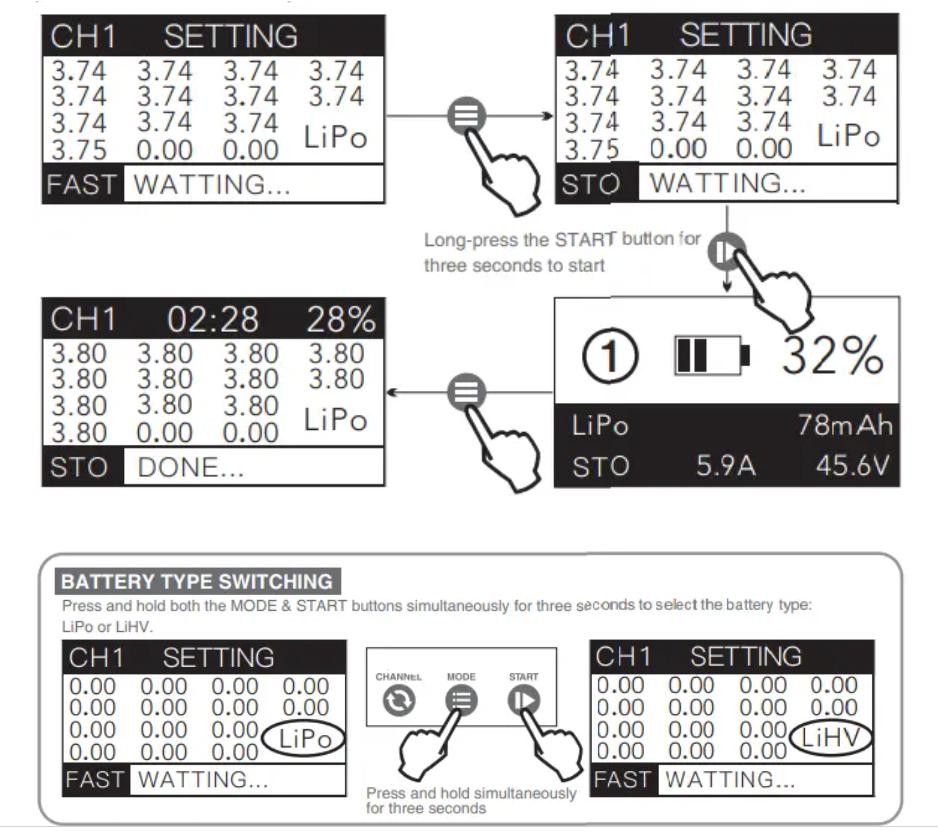

- Working modes
- Fast Charge · Charge · Storage
FROM THE FLIGHT MANUAL
Up close and from every angle.

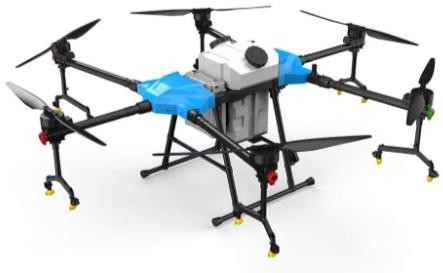

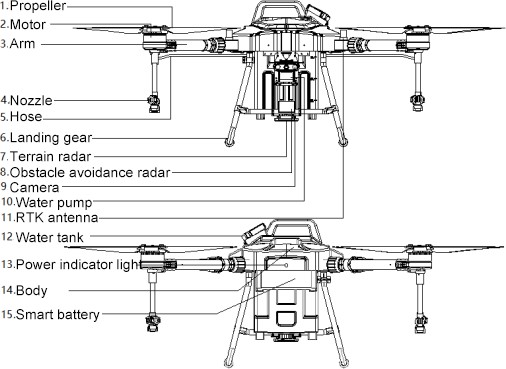

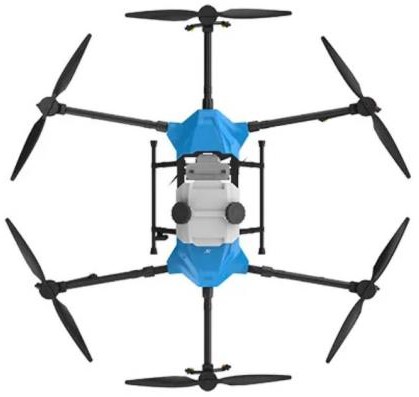

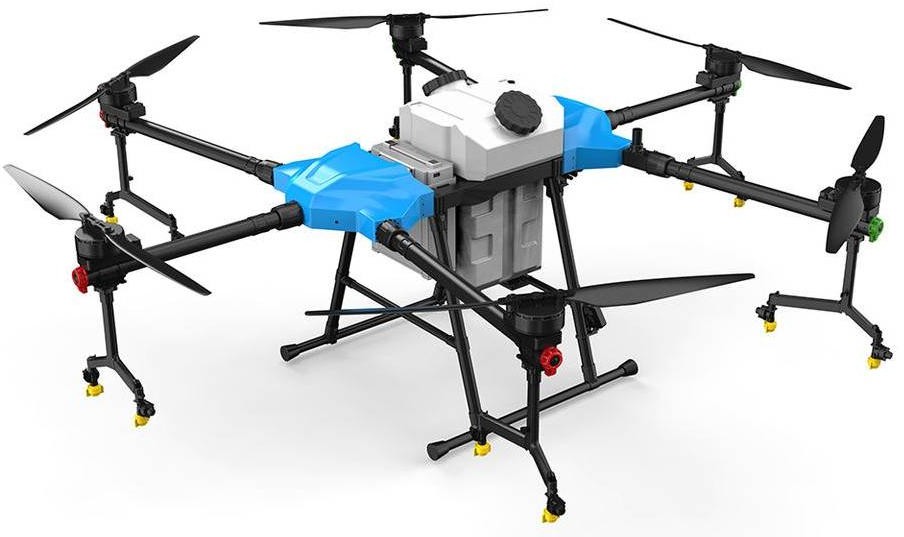

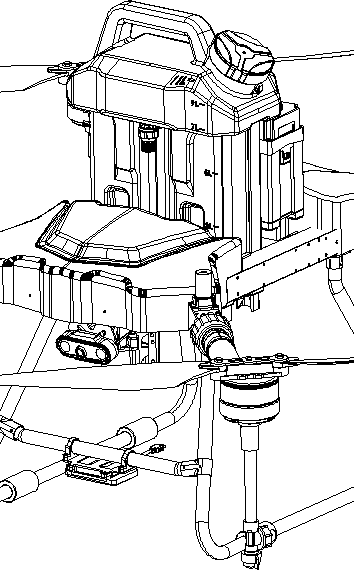

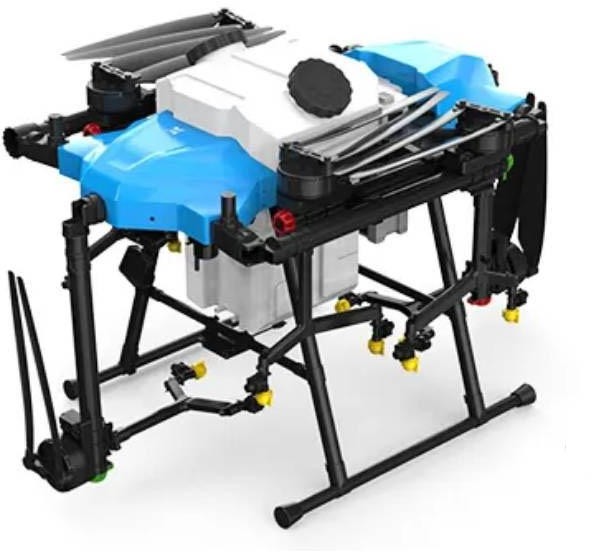

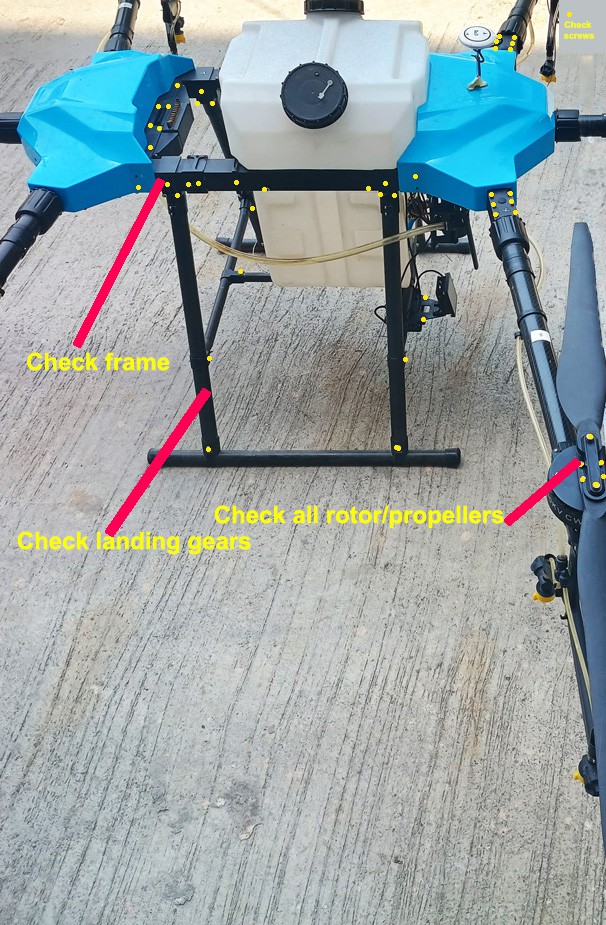

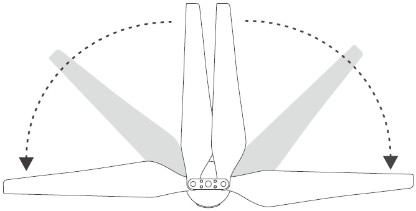

Imagery from the AAA-20L Flight Manual — the airframe, propulsion, spray system and ground equipment.
