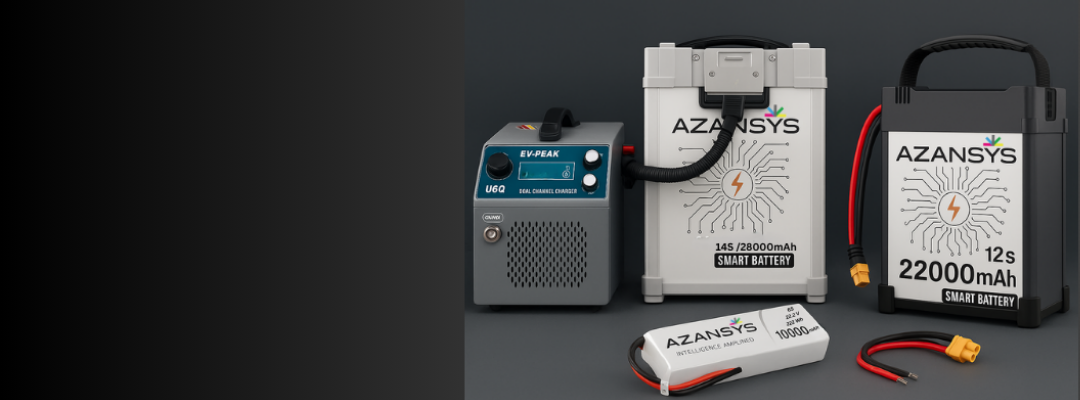

Intelligent Drone Charging Solutions

Reliable, powerful, and smart battery systems by Azansys.

Intelligent Drone Charging Solutions

Azansys Drone Battery & Charger solutions are engineered to deliver superior energy efficiency, fast charging, and long-lasting power for uninterrupted drone operations. Designed for demanding agricultural and industrial applications, our chargers ensure optimal battery health, reduce downtime, and enhance field productivity. With built-in safety features and intelligent charging technology, you can count on performance that keeps your drone missions going strong.

Advanced charging systemsSmart ChargingQuick-Swap Compatible

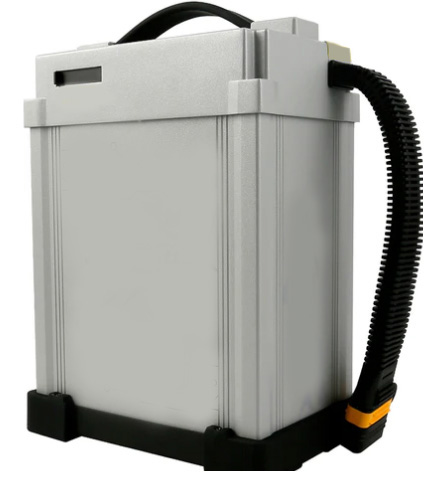

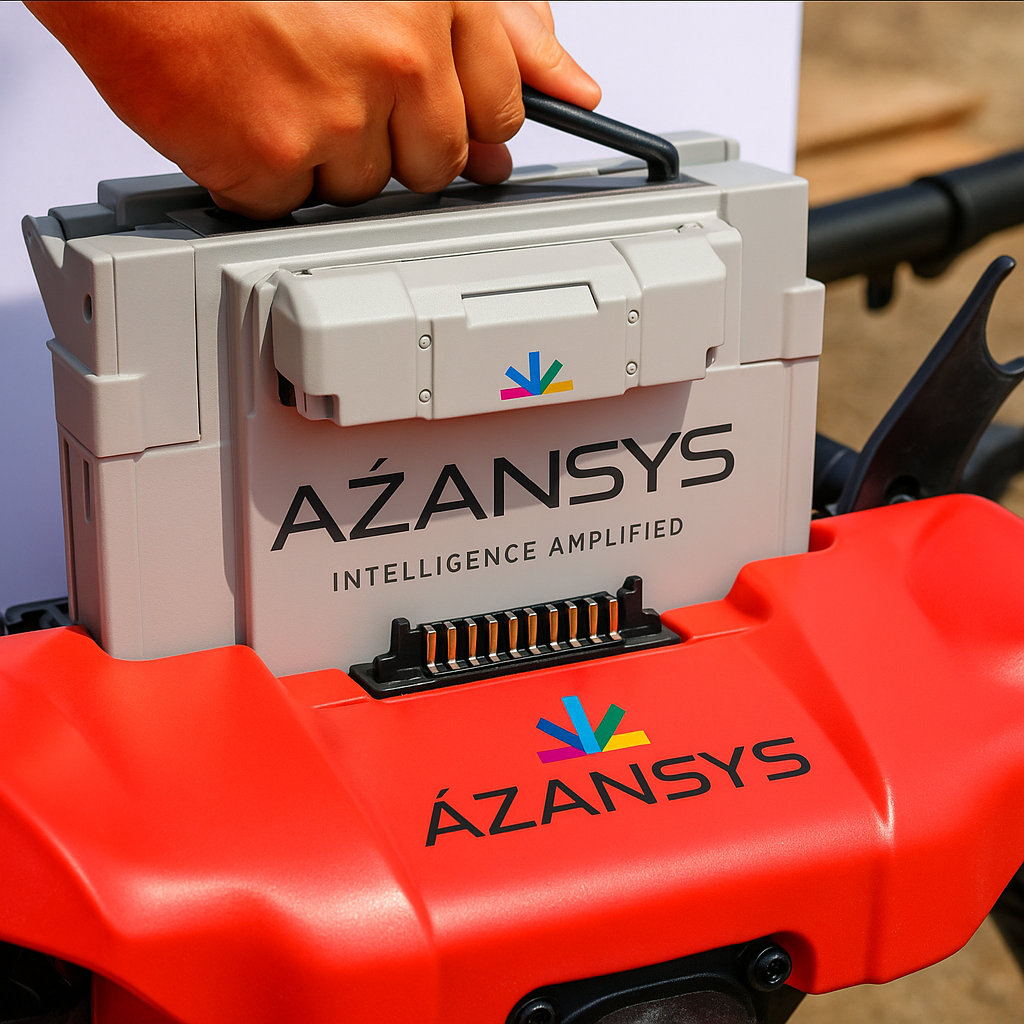

Azansys Smart Battery

🔋 LiPo Drone Batteries – Power That Lasts

⚙️

Available Types

6S /12S / 14S LiPo for various drone power needs.

🔋

High Energy Density

Ensures extended flight durations per charge.

Stable Discharge

Supports powerful motors consistently in flight.

🌡️

Thermal Management

Avoids overheating with intelligent cooling design.

🔒

Multi-layer Protection

Guards against overcharge, discharge, and short circuits.

🧠

Smart BMS

Integrated Battery Management System for smart monitoring.

🔄

Extended Cycle Life

Designed for longevity in demanding drone operations.

🧩

Custom Pack Design

Tailored battery packs to fit your specific drone models.

🔋 Drone Battery Specifications

Azansys 16S LiPo Battery

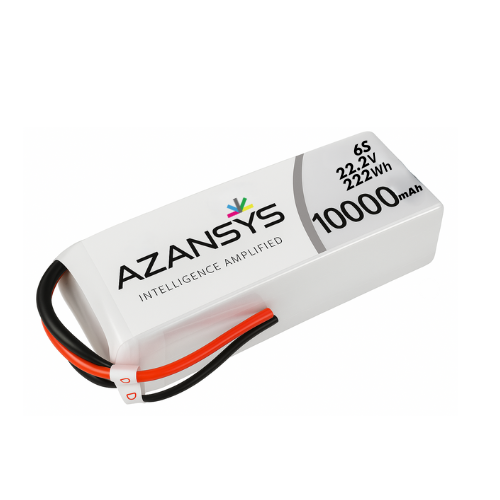

Azansys 6S LiPo

Top-tier performance battery designed for demanding industrial UAVs.

  • Cell Configuration:6S (6 cells in series)
  • Nominal Voltage:22.2V
  • Capacity:10,000 mAh
  • Discharge Rate:30C (i.e., max discharge current is 300A)
  • Weight:1350g (±20g)
  • Dimensions:176 × 66 × 58 mm (L × W × H)

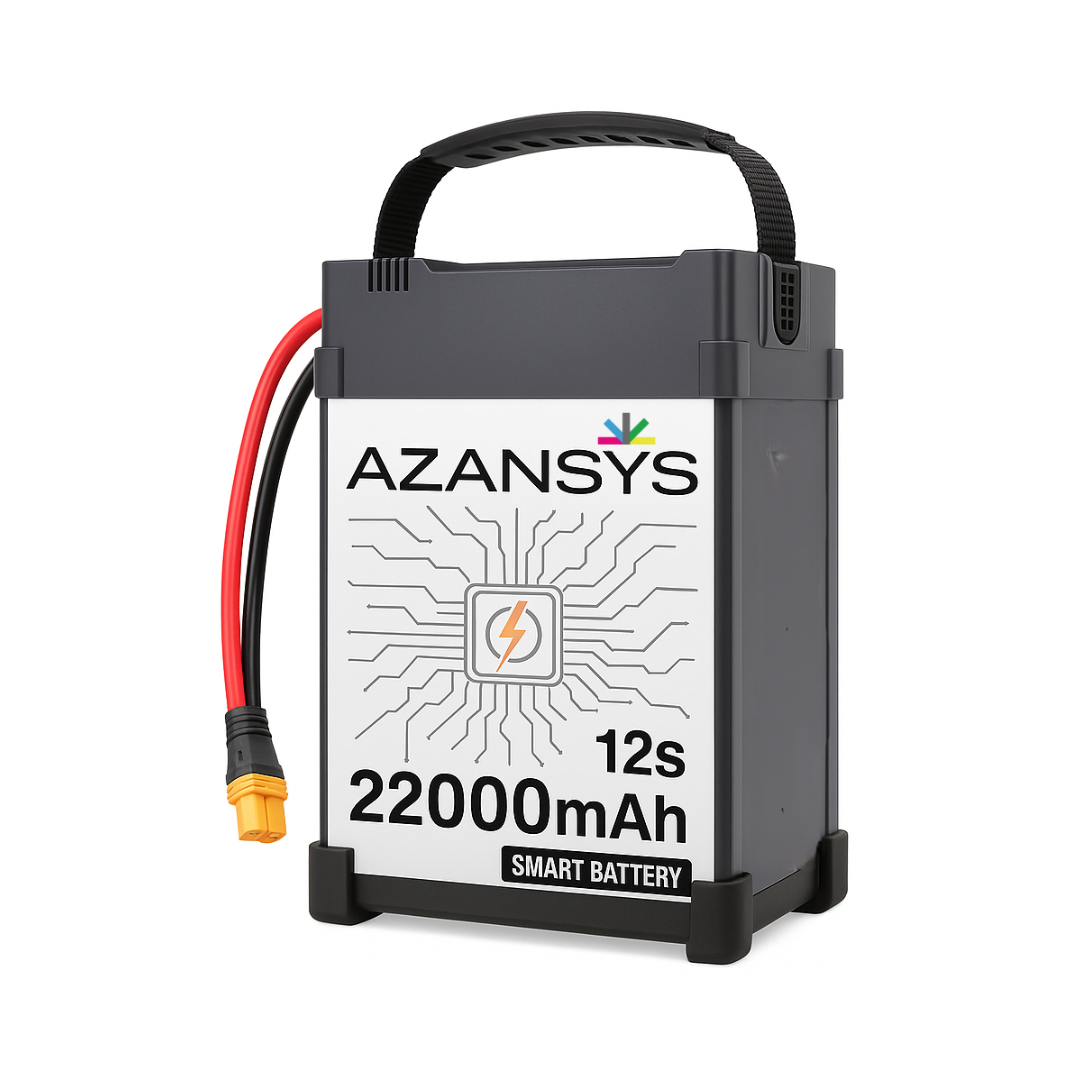

Azansys 12S LiPo Battery

Azansys 12S LiPo

High energy, long endurance battery ideal for various UAV applications.

  • Cell Configuration: 12S (4.2V x 12)
  • Nominal Voltage: 44.4V
  • Capacity: 16000 – 22000 mAh
  • Discharge Rate: 25C / 30C
  • Weight: 2.5 – 3.2 kg
  • Features: High energy, long endurance

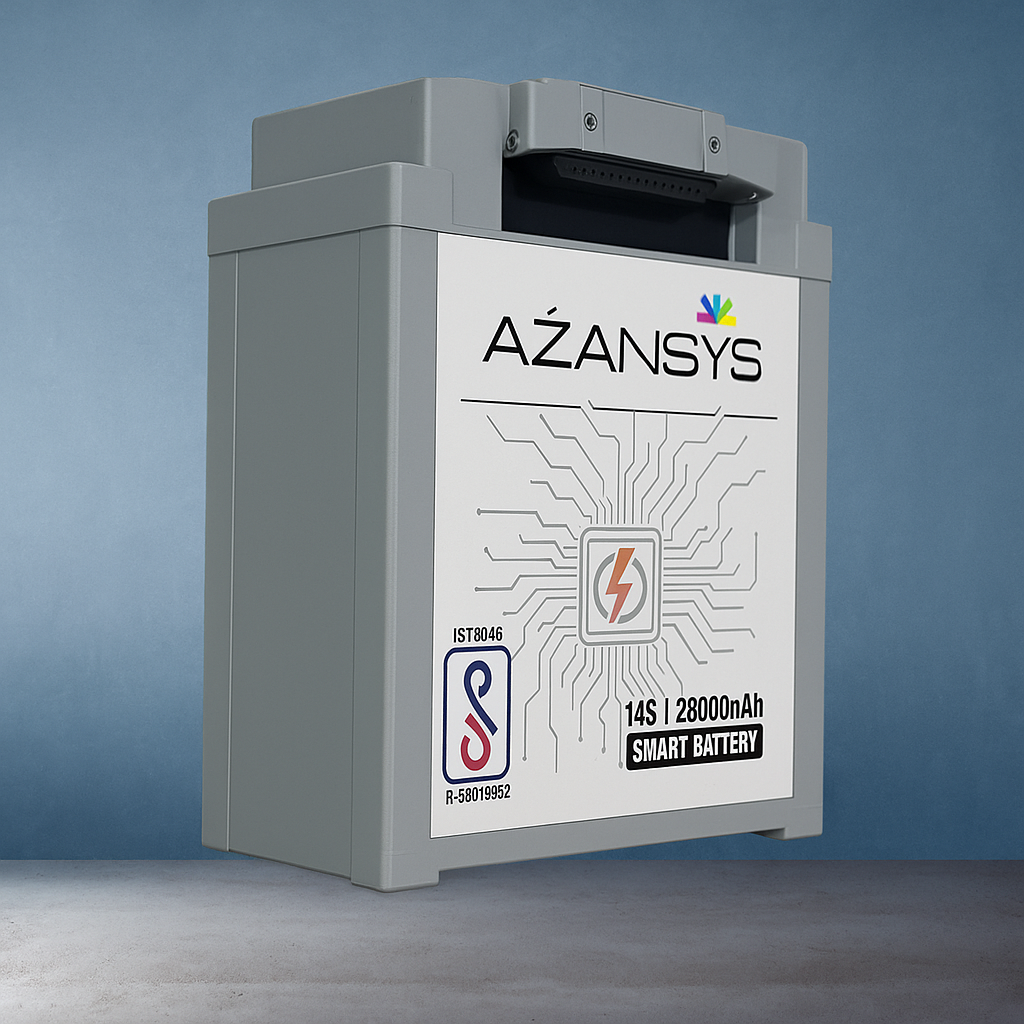

Azansys 14S LiPo Battery

Azansys 14S LiPo

Extended range battery supporting heavier payloads for logistics or industrial use.

  • Cell Configuration: 14S (4.2V x 14)
  • Nominal Voltage: 51.8V
  • Capacity: 22000 – 28000 mAh
  • Discharge Rate: 25C / 30C
  • Weight: 3.0 – 3.5 kg
  • Features: Extended range, heavy lift support

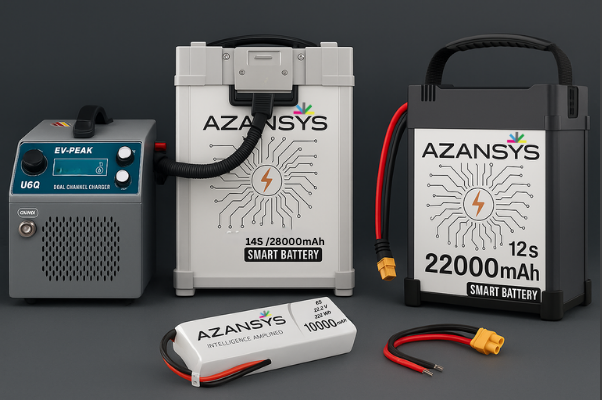

Engineered Power Solutions for Next-Gen Drones

High-performance LiPo batteries and smart charging systems tailored for UAV applications

🔋 Power & Reliability for Mission-Critical Operations

At Azansys Technologies, we don’t just manufacture drones—we also design and build the power systems that drive them. Our in-house production includes advanced 6S, 12S, and 14S LiPo batteries and the intelligent EV-Peak U6Q fast-charging system, optimized for agriculture, defense, logistics, and firefighting sectors.

Drone Charger

Professional Charging Station

Quad Channel

Charging 4 batteries at the same time

Large Power

Super large battery current at 60A

Extremely Fast Charging

22000mAh takes only 15 minutes

More Secure

Multiple protection system

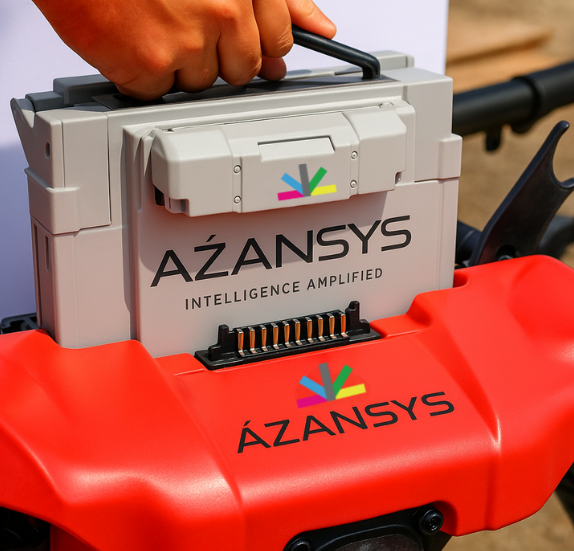

Agricultural Drone

Intelligent, Fast & Reliable Power Solutions

Experience next-gen drone charging technology with Azansys Smart Battery Systems.
Designed for high-performance agricultural, logistics, and surveillance drones, our power solutions offer:
​​​​​​​✅ Dual Channel Smart Charging for maximum efficiency
✅ Long-lasting LiPo battery packs (up to 28000mAh)
✅ Overheat, overcharge, and voltage surge protection
✅ Easy integration with drone fleets for uninterrupted missions
✅ Rugged and compact design – built for field durability

charger Drone

Drones Battery

drone charger Drone

Drones Battery

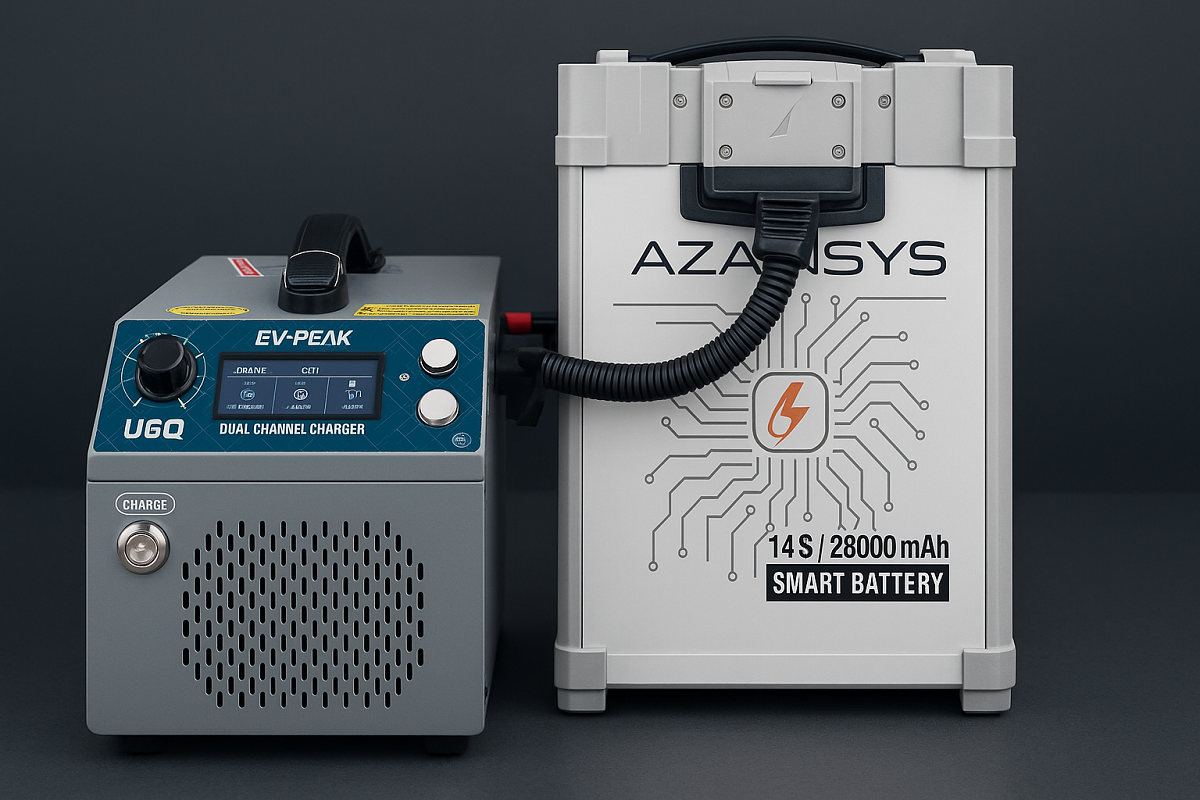

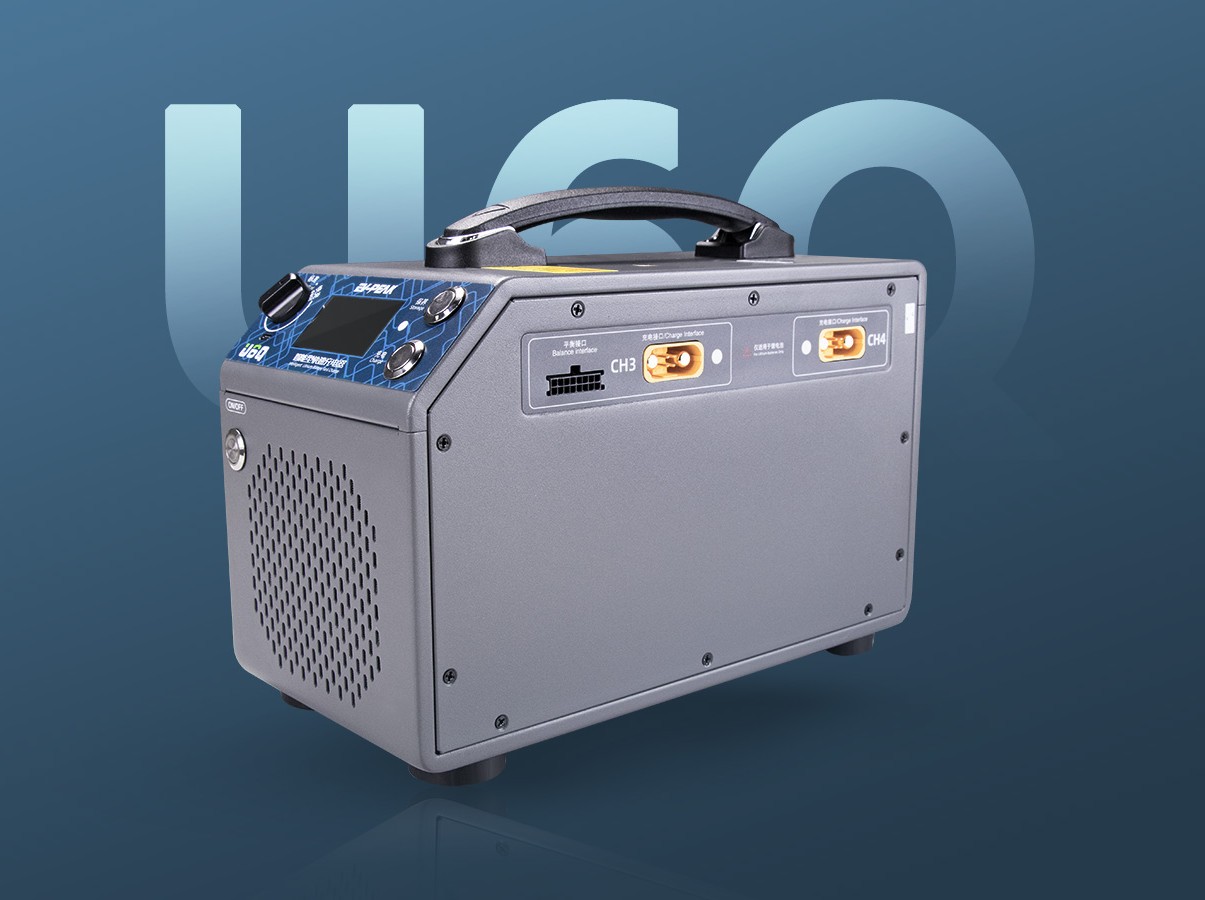

⚡ EV-Peak U6Q Smart Drone Charger

High-efficiency charger designed for 12S–14S LiPo batteries, ideal for field operations and lab use.

Feature Specification
Input Voltage 100–240V AC / 11–18V DC
Output Channels 2x Independent or Parallel
Max Charge Power 1500W (750W/channel)
Charge Current Range 1.0 – 40.0 A
Supported Battery Types 12S, 14S LiPo / Li-ion
Charging Modes Balance / Fast / Storage
Display Color LCD with multi-language support
Safety Features Overvoltage, overcurrent, temp cutoff, short-circuit
Weight Approx. 2.6 kg
Dimensions 210 x 180 x 100 mm
Smart Drone Charger

🏭 Why Choose Azansys Battery & Charging Systems?

  • ✅ Made in India – 100% in-house production
  • 🧪 Tested & Certified for industrial UAVs
  • 🔄 Customizable Packs per drone platform
  • ⏱️ Fast Charging = Less Downtime
  • 🛡️ Built-In Safety Protocols
  • 📦 Bulk Supply for OEMs & providers

 LiPo Battery Health & Safety Guidelines

Ensure safe operation and best performance by following these instructions.

Icon 1

      General Safety Instructions

  • Check polarity before wiring.
  • Avoid reverse charging to prevent damage.
  • Use gloves or trimmed nails while handling.
Icon 2

       Fire & Liquid Hazards

  • Do not incinerate or throw in fire.
  • Keep away from water or any liquid.
Icon 3

      Battery Replacement

  • Only authorized personnel should replace batteries.
  • Self-replacement is not allowed.
Icon 4

      Do Not Tamper

  • Do not open, crush, or deform the battery.
  • Internal short-circuits can lead to fire or explosion.

📞 Let’s Power Your Drone Fleet

OEM battery packs, custom integrations, or distributor partnerships—Azansys has your back.

📍 Address: Azansys Technologies LLP

📞 Phone: +91-9389638738

🌐 Website:www.azansys.com

📧 Email: info@azansys.com
